Alimentatore PC Thermaltake Berlin 630 TR2-630AH2NCB
Alimentatore PC Thermaltake Berlin 630 630W 80+ ATX
ID: 800
MODELLO: W0393RE
NOME COMMERCIALE: Thermaltake Berlin 630W
EAN: 4716872052677
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 2165
Recensioni 0
Rating 0 di 5
SOSPESO
€
70.83
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Modularità
Non Modulare
Potenza
da 551W a 650W
Efficenza
80+ Bronze
Formato
ATX
DESCRIZIONE

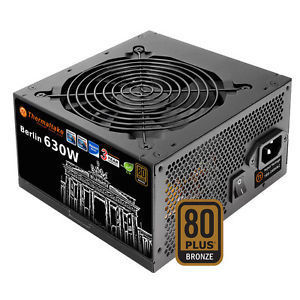

Thermaltake Berlin 630W
Thermaltake new German Series is power supply units (PSU) that incorporate various high-quality components, ranging from 430W to 630W that will always accommodate any mainstream build under any circumstance. Embedded intelligent cooling fan delivers silent cooling with intelligent temperature control. Single +12V rail design enable non-stop usage with stable and reliable performance.
Ultra Quiet Fan
Large 120mm cooling fan with intelligent RPM control delivers cool performance and silent operation.
80 PLUS Bronze Certified
German Series saves energy through its high energy efficiency of up to 85% and is 80 PLUS® Bronze certified.
High Efficiency Circuit Design
Double-forward switching circuitry provides high reliability and constant current power supply. Maximum efficiency reaches up to 85% under wide load range.
Massive and Dedicated Single +12V Output
German Series is equipped with a powerful +12V rail, superior performance under all types of system loading.
| P/N | W0393RE |
| Model | TR2-630AH2NCB |
| Type | Intel ATX 12V 2.3 |
| Max. Output Capacity | 650W |
| Peak Output Capacity | 700W |
| Color | Black |
| Dimension (H x W x D) | 86mm x 150mm x 140mm |
| PFC （Power Factor Correction） | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | 16msec (minimum) @ 50% load at 230Vac 50Hz input. |
| Input current | 10A |
| Input Frequency Range | 50 Hz - 60 Hz |
| Input Voltage | 115 Vac- 230 Vac |
| Operating Temperature | +0℃ to +40℃ |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperature | -20 ℃ to +70 ℃ |
| Storage Humidity | 20% to 95%, non-condensing |
| Cooling System | 120mm Fan |
| Efficiency | 82% efficiency @ 20-100% load |
| MTBF | 100,000 hrs minimum |
| Safety Approval | TUV, CE, CB |
| PCI-E Connector | PCI-E 6+2pin x2 |
