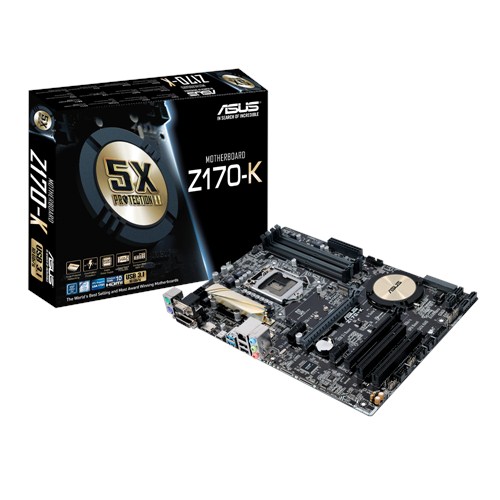

Scheda madre Asus Z170-K
Scheda madre Asus Z170-K Socket Intel 1151 Chipset Z170 Sata Express M.2 Socket RAID USB3.1 ATX
ID: 1176
MODELLO: 90MB0NB0-M0EAY0
NOME COMMERCIALE: Scheda madre Asus Z170-K 90MB0NB0-M0EAY0
EAN: 4712900114362
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 773
Recensioni 0
Rating 0 di 5
SOSPESO
![Scheda madre Asus Z170-K Scheda madre Asus Z170-K](https://www.street-price.it/data/image/product/thumb/90MB0NB0_M0EAY0-DrJY.png)
€
102.61
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
Intel
Socket
Intel 1151
Chipset
Intel Z170
Formato
ATX
Supporto RAM
DDR4
SATA3
6-porte
Ultra M.2
M.2 Socket
SATA Express 10 Gb/s
SATA Express 10 Gb/s
USB 2.0
6-porte
USB 3.0
4-porte
USB 3.1
Type-C
Output Video
DVI-HDMI
DESCRIZIONE
- CPU
Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. - Chipset
Intel® Z170
- Memory
4 x DIMM, Max. 64GB, DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* The maximum memory frequency supported varies by processor. - Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ - Multi-GPU Support
Supports AMD Quad-GPU CrossFireX™ Technology
- Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
2 x PCIe 3.0/2.0 x1
2 x PCI - Storage
Intel® Z170 chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x SATA Express port, gray, Compatible with 2 x SATA 6.0 Gb/s ports
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology*1 - LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
- Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - USB Ports
ASMedia® USB 3.1 controller :
2 x USB 3.1/3.0/2.0 port(s) (2 at back panel, teal blue)
Intel® Z170 chipset :
1 x USB 5Gb/s port(s) port(s) (1 at back panel, , Type-C, Reversible, Support 3A power output)
Intel® Z170 chipset :
4 x USB 3.0/2.0 port(s) (Type-A, 4 at mid-board)
Intel® Z170 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , Type-A, 4 at mid-board) - Special Features
ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 7 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS EPU :
- EPU
ASUS Exclusive Features :
- GPU Boost
- AI Suite 3
- Ai Charger+
- M.2 & SATA Express
- Anti-Surge
- Low EMI Solution
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer - Operating System Support
Windows® 10 , 64bit
Windows® 8.1 , 64bit
Windows® 7 , 32bit/64bit *3 - Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
2 x USB 3.1 (teal blue)Type-A
2 x USB 2.0
3 x Audio jack(s) - Internal I/O Ports
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s) - Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD - BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
- Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
- Support Disc
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version) - Form Factor
ATX Form Factor
12 inch x 8.8 inch ( 30.5 cm x 22.4 cm ) - Note
*1: These functions will work depending on the CPU installed.
*2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*3: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.
