Scheda Madre Asrock X99M EXTREME4

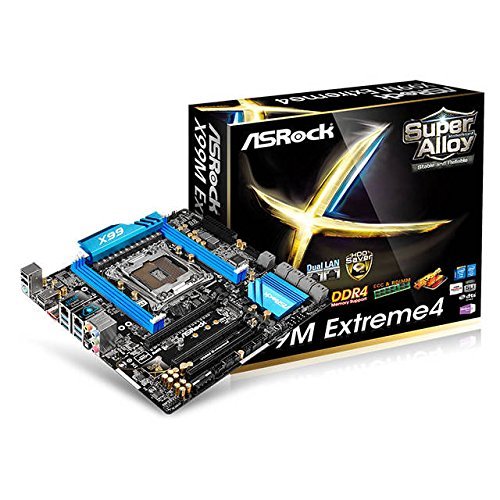

Scheda Madre Asrock X99M EXTREME4 Socket Intel 2011-3 Chipset X99 DDR4 Ultra M.2 eSATA Thunderbolt Micro-ATX
ID: 1194
MODELLO: X99M EXTREME4
NOME COMMERCIALE: Scheda madre Asrock X99M EXTREME4
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 1130
Recensioni 0
Rating 0 di 5
SOSPESO
€
217.94
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
Intel
Socket
Intel 2011-3
Chipset
Intel X99
Formato
Micro ATX
Supporto RAM
DDR4
SATA3
+ 6-porte
Ultra M.2
M.2 Socket
USB 2.0
+ 6-porte
USB 3.0
6-porte
Output Video
No Output Video
DESCRIZIONE
| Unique Feature | ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Ultra Dual-N MOSFET (UDM) - NexFET™ MOSFET - Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) - Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock HDD Saver Technology ASRock Full Spike Protection ASRock Cloud ASRock APP Shop |
| CPU | - Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family for the LGA 2011-3 Socket - Digi Power design - 12 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology - Supports Untied Overclocking Technology |
| Chipset | - Intel® X99 |
| Memory | - Quad Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 3000+(OC)*/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, un-buffered memory - Supports non-ECC RDIMM (Registered DIMM) - Supports DDR4 ECC, un-buffered memory/RDIMM with Intel® Xeon® processors E5 series in the LGA 2011-3 Socket - Max. capacity of system memory: 64GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
** Please refer to Memory Support List on ASRock's website for more information. |
| BIOS | - 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 5.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment |
| Audio, Video and Networking | |
| Graphics | - n/a |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection (ASRock Full Spike Protection) - Supports Purity Sound™ 2 - Nichicon Fine Gold Series Audio Caps - 115dB SNR DAC with differential amplifier - TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets) - Direct Drive Technology - EMI shielding cover - PCB isolate shielding - Supports DTS Connect |
| LAN | - 1 x Intel® I218V (Gigabit LAN PHY 10/100/1000 Mb/s) - 1 x Qualcomm® Atheros® AR8171 (PCIE x1 Gigabit LAN 10/100/1000 Mb/s) - Supports Qualcomm® Atheros® Security Wake On Internet Technology (on Qualcomm® Atheros®AR8171) - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Expansion / Connectivity | |
| Slots | - 2 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE2 @ x16 mode) - 1 x PCI Express 2.0 x16 Slot (PCIE3 @ x4 mode) - Supports AMD Quad CrossFireX™ and CrossFireX™ - Supports NVIDIA® Quad SLI™ and SLI™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE2) *If you install CPU with 28 lanes, PCIE1/PCIE2 will run at x16/x8.
|
| Storage | - 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel® Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology - 1 x eSATA Connector, supports NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) *S_SATA3_3 connector is shared with the eSATA port, S_SATA3_2 connector is shared with Ultra M.2 Socket
**RAID is supported on SATA3_0 ~ SATA3_5 ports only. |
| Connector | - 1 x COM Port Header - 1 x TPM Header - 1 x Power LED Header - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control) - 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control) - 1 x Power Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x HDD Saver Connector - 1 x PCIe Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector* - 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x Dr. Debug with LED - 1 x BIOS Selection Switch |
| Rear Panel I/O | - 1 x PS/2 Mouse/Keyboard Port - 1 x Optical SPDIF Out Port - 1 x eSATA Connector - 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Switch - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous | |
| Software and BIOS | Software - ASRock A-Tuning - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Restart to UEFI UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI System Browser - ASRock UEFI Tech Service - ASRock Dehumidifier - ASRock Easy RAID Installer - ASRock Easy Driver Installer |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Orbweb.ME Professional (Win 8.1 / 7) |
| Accessories | - 1 x ASRock SLI_Bridge Card - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x HDD Saver Cable - 1 x Screw for Ultra M.2 Socket |
| Hardware Monitor | - CPU/Chassis temperature sensing - CPU/Chassis/Power Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages |
| Form Factor | - Micro ATX Form Factor - High Density Glass Fabric PCB |
| OS | - Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit |
| Certifications | - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) |
