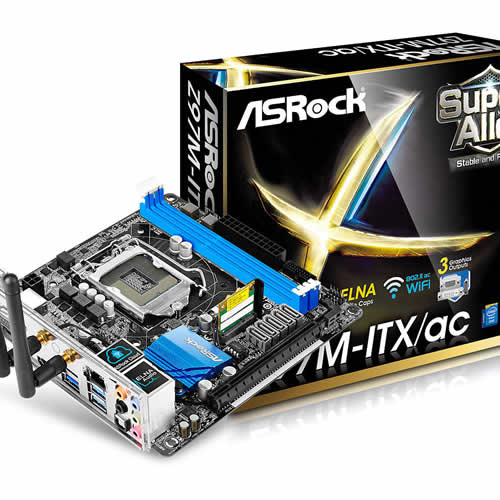

Scheda Madre Asrock Z97M-ITX/AC
Scheda Madre Asrock Z97M-ITX/AC Socket Intel 1150 Chipset Z97 DDR3/DDR3L RAID Wi-Fi Mini-ITX
ID: 1241
MODELLO: Z97M-ITX/AC
NOME COMMERCIALE: Asrock Z97M-ITX/AC
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 691
Recensioni 0
Rating 0 di 5
SOSPESO
€
0.00
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
Intel
Socket
Intel 1150
Chipset
Intel Z97
Formato
Mini ITX
Supporto RAM
DDR3/DDR3L
SATA3
5-porte
USB 2.0
4-porte
USB 3.0
6-porte
Wi-FI
Wi-Fi Ready
Output Video
VGA-DVI-HDMI
DESCRIZIONE
MB 1150 ASRock Z97M-ITX/AC
| General | |
| Unique Feature | ASRock Super Alloy - Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke) - NexFET™ MOSFET - Sapphire Black PCB ASRock 802.11ac WiFi ASRock Full Spike Protection ASRock Cloud ASRock APP Shop |
| CPU | - Supports 5th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150) - Supports New 4th and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150) - 4 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology - Supports Intel® K-Series unlocked CPUs - Supports ASRock BCLK Full-range Overclocking |
| Chipset | - Intel® Z97 |
| Memory | - Dual Channel DDR3/DDR3L Memory Technology - 2 x DDR3/DDR3L DIMM Slots - Supports DDR3/DDR3L 3100+(OC)/2933(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB* - Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2 *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
| BIOS | - 64Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 1.1 Compliant wake up events - SMBIOS 2.3.1 support - CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjustment |
| Audio, Video and Networking | |
| Graphics | - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel®HD Graphics 4400/4600 - Pixel Shader 5.0, DirectX 11.1 - Max. shared memory 512MB* - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI with max. resolution up to 1920x1200 @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports *The size of maximum shared memory may vary from different operating systems.
**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. ****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection (ASRock Full Spike Protection) - ELNA Audio Caps |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Qualcomm® Atheros® AR8171 - Supports Qualcomm® Atheros® Security Wake On Internet Technology - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Wireless LAN | - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.0 / 3.0 + High speed class II |
| Expansion / Connectivity | |
| Slots | - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) - 1 x Vertical Half Mini-PCI Express Slot: For WiFi + BT Module |
| Storage | - 5 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug |
| Connector | - 1 x Chassis Intrusion Header - 1 x TPM Header - 1 x CPU Fan Connector (4-pin) - 1 x Chassis Fan Connector (4-pin) - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
| Rear Panel I/O | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous | |
| Software and BIOS | Software - ASRock A-Tuning - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Restart to UEFI UEFI - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock UEFI Guide - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI System Browser - ASRock UEFI Tech Service - ASRock Dehumidifier - ASRock Easy RAID Installer - ASRock Easy Driver Installer |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Orbweb.ME Professional (Win 8.1 / 7) |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x WiFi-802.11ac Module - 2 x SMA WiFi Antenna Cables - 2 x ASRock WiFi 2.4/5 GHz Antennas - 1 x WiFi Module Bracket - 2 x Screws for WiFi Module |
| Hardware Monitor | - CPU/Chassis temperature sensing - CPU/Chassis Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages |
| Form Factor | - Mini-ITX Form Factor - Solid Capacitor design - High Density Glass Fabric PCB |
| OS | - Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit |
| Certifications | - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) |
