Scheda Madre Asus H110M-D D3
Scheda Madre Asus H110M-D D3 Socket 1151 Chipset H110 Micro-ATX
ID: 142
MODELLO: 90MB0NK0-M0EAY0
NOME COMMERCIALE: Scheda Madre H110M-D D3
EAN: 4712900189117
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 969
Recensioni 0
Rating 0 di 5
SOSPESO
€
61.81
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
Intel
Socket
Intel 1151
Chipset
Intel H110
Formato
Micro ATX
Supporto RAM
DDR3
SATA3
4-porte
USB 2.0
6-porte
USB 3.0
4-porte
Output Video
VGA-HDMI
DESCRIZIONE
- CPU
Intel® for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list - Chipset
Intel® H110
- Memoria
2 x DIMM, Max. 32GB, DDR3 1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor. - Grafica
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ - Slot di Espansione
1 x PCIe 3.0/2.0 x1 (x16 mode)
2 x PCIe 2.0 x1 - Storage
Intel® H110 Chipset :
4 x SATA 6Gb/s port(s), gray, - LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
- Audio
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *1
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Porte USB
Intel® H110 chipset :
4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® H110 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board) - Caratteristiche Speciali
ASUS EPU :
- EPU
ASUS Exclusive Features :
- GPU Boost
- AI Suite 3
- Ai Charger
- Anti-Surge
- Low EMI Solution
- USB 3.0 Boost
- EZ XMP ASUS Exclusive Features
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer - Operating System Support
Windows® 10 64bit
Windows® 8.1 64bit
Windows® 7 32bit/64bit *2 - Porte I/O Posteriori
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
2 x USB 2.0
1 x COM port(s)
1 x Parallel port(s)
3 x Audio jack(s) - I/O Interne
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, blue)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector - Accessori

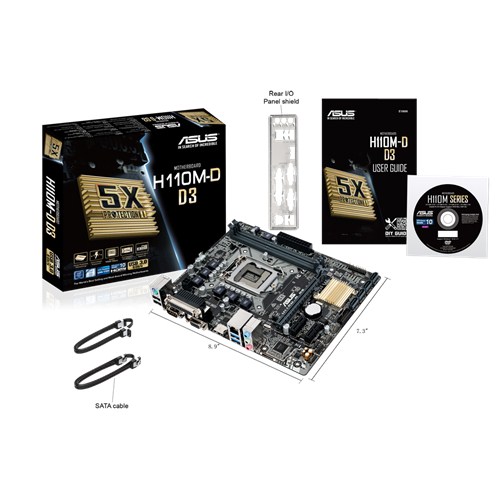

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD - BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information - Gestibilità
WfM 2.0, DMI 3.0, WOL by PME, PXE
- Disco di Supporto
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version) - Dimensioni Scheda
uATX Form Factor
8.9 inch x 7.3 inch ( 22.62 cm x 18.55 cm ) - Note
*1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*2: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.
