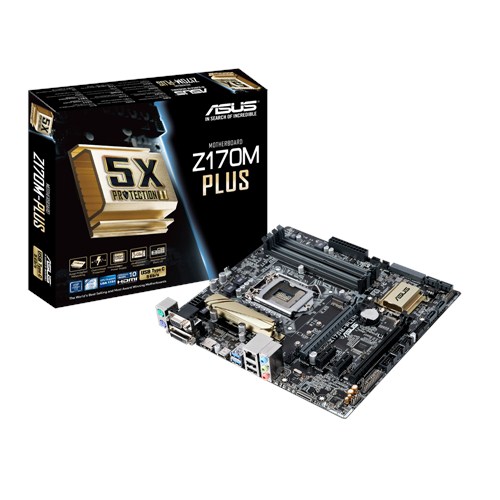

Scheda Madre Asus Z170M-PLUS
Scheda Madre Asus Z170M-PLUS Socket 1151 Chipset Z170 DDR4 SATA Express M.2 Socket USB 3.1 Micro-ATX
ID: 166
MODELLO: 90MB0M60-M0EAY0
NOME COMMERCIALE: Scheda Madre Asus Z170M-PLUS
EAN: 4712900115512
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 1114
Recensioni 0
Rating 0 di 5
SOSPESO
![Scheda Madre Asus Z170M-PLUS Scheda Madre Asus Z170M-PLUS](https://www.street-price.it/data/image/product/thumb/1450112951_166.png)
€
133.56
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
Intel
Socket
Intel 1151
Chipset
Intel Z170
Formato
Micro ATX
Supporto RAM
DDR4
SATA3
6-porte
Ultra M.2
M.2 Socket
SATA Express 10 Gb/s
SATA Express 10 Gb/s
USB 2.0
6-porte
USB 3.0
6-porte
USB 3.1
Type-A + Type-C
Output Video
VGA-DVI-HDMI
DESCRIZIONE
-
- CPU
Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list - Chipset
Intel® Z170
- Memoria
4 x DIMM, Max. 64GB, DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - Grafica
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously - Supporto Multi-GPU
Supports AMD Quad-GPU CrossFireX™ Technology
- Slot di Espansione
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
2 x PCIe 3.0/2.0 x1 - Storage
Intel® Z170 chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x SATA Express port, gray, compatible with 2 x SATA 6.0 Gb/s ports
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology*1 - LAN
Intel® I219V, 1 x Gigabit LAN Controller(s)
Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY) - Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Porte USB
Intel® Z170 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, black, Type-A, 4 at mid-board)
Intel® Z170 chipset :
6 x USB 3.0/2.0 port(s) (2 at back panel, blue, Type-A, 4 at mid-board)
Intel® Z170 chipset :
1 x USB 5Gb/s port(s) port(s) (1 at back panel, black, Type-C, Reversible, Support 3A power output) - Caratteristiche Speciali
ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 7 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS EPU :
- EPU
ASUS Exclusive Features :
- TurboV EVO
- GPU Boost
- AI Suite 3
- Ai Charger
- M.2 & SATA Express
- Anti-Surge
- ESD Guards
- USB 3.0 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer - Operating System Support
Windows® 10 64bit
Windows® 8.1 64bit
Windows® 7 32bit/64bit *3 - Porte I/O Posteriori
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
2 x USB 3.0 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s) - I/O Interne
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SATA Express connector: gray, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3
1 x LPT header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s) - Accessori
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD - BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
- Gestibilità
WfM 2.0, DMI 3.0, WOL by PME, PXE
- Disco di Supporto
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version) - Dimensioni Scheda
mATX Form Factor
9.6 inch x 8.95 inch ( 24.4 cm x 22.7 cm )
- CPU
