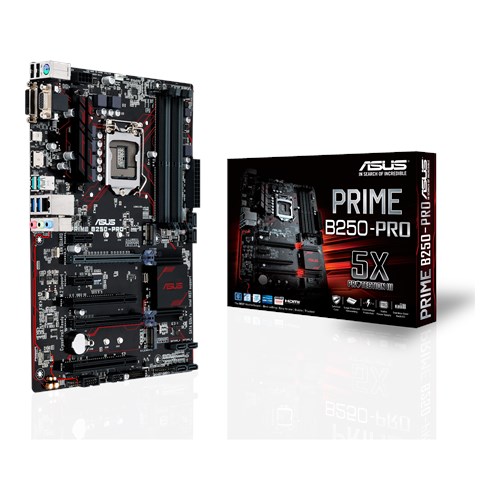

Scheda Madre Asus PRIME B250-PRO 90MB0SH0-M0EAY0
Scheda Madre Asus PRIME B250-PRO Socket Intel 1151 Chipset Intel B250 DDR4 USB 3.1 ATX
ID: 2479
MODELLO: 90MB0SH0-M0EAY0
NOME COMMERCIALE: Scheda Madre Asus PRIME B250-PRO
EAN: 4712900599220
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 1706
Recensioni 0
Rating 0 di 5
SOSPESO
€
108.99
Costo spedizione: € 9.00
Inserisci nel carrello
TAG
Tecnologia
Intel
Socket
Intel 1151
Chipset
Intel B250
Formato
ATX
Supporto RAM
DDR4
SATA3
6-porte
Ultra M.2
M.2 Socket
USB 2.0
4-porte
USB 3.0
4-porte
USB 3.1
Type-A + Type-C
Output Video
VGA-DVI-HDMI
DESCRIZIONE
- CPU
Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. - Chipset
Intel® B250
- Memoria
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. - Grafica
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB - Supporto Multi-GPU
Supports AMD CrossFireX™ Technology
- Slot di Espansione
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 3.0/2.0 x16 (max at x4 mode, black) *1
2 x PCIe 3.0/2.0 x1
2 x PCI - Storage
Intel® B250 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Intel® Optane™ Memory Ready *3 - LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
ASUS LAN Guard - Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *4
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Porte USB
ASMedia® USB 3.1 controller :
2 x USB 3.1/3.0/2.0 port(s) (2 at back panel, teal blue, Type-A)
Intel® B250 Chipset :
1 x USB 3.0/2.0 port(s) (1 at back panel, , Type-C, Reversible, Support 3A power output)
Intel® B250 Chipset :
4 x USB 3.0/2.0 port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Intel® B250 Chipset :
4 x USB 3.0/2.0 port(s) (2 at back panel, black, Type-A, 2 at mid-board) - Caratteristiche Speciali
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Low EMI Solution
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
Digi+VRM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) - Porte I/O Posteriori
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
2 x USB 3.1 (teal blue)
2 x USB 3.0 (blue)
2 x USB 2.0
3 x Audio jack(s) - I/O Interne
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x Serial Port header
1 x System panel connector
1 x AIO PUMP Header - Accessori
User's manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x Supporting DVD - BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
- Gestibilità
WfM 2.0, DMI 3.0, WOL by PME, PXE
- Disco di Supporto
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version) - Sistema Operativo
Windows® 10 64-bit
Windows® 8.1 64-bit *5
Windows® 7 32-bit *5
Windows® 7 64-bit *5 - Dimensioni Scheda
ATX Form Factor
12. inch x 8.6 inch ( 30.5 cm x 21.8 cm )
