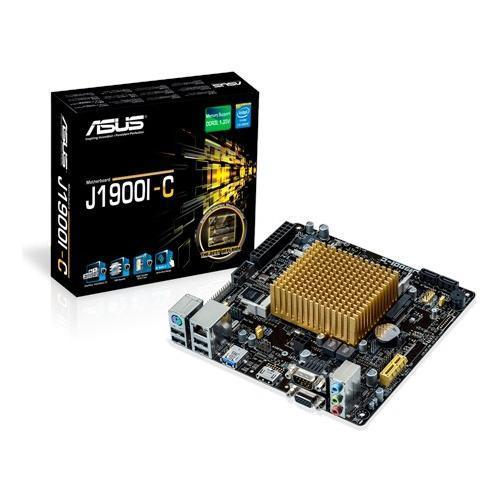

Scheda Madre Asus J1900I-C
Scheda Madre Asus J1900I-C SoC integrato Intel J1900 CeleronJ Quad-Core USB3.0 Mini-ITX
ID: 816
MODELLO: 90MB0JH0-M0EAY1
NOME COMMERCIALE: Scheda Madre Asus J1900I-C
EAN: 4053162934351
CONDIZIONE: Nuovo
RECESSO: Fino a 14 giorni (politica di recesso )
Visualizzazioni 985
Recensioni 0
Rating 0 di 5
SOSPESO
![Scheda Madre Asus J1900I-C Scheda Madre Asus J1900I-C](https://www.street-price.it/data/image/product/thumb/90MB0JH0_M0EAY1-axey.jpg)
€
105.17
Costo spedizione: € 9.00
Inserisci nel carrello
NOTE
*1:Use a chassis with HD audio module in the front panel to support an 8-channel audio output. *2:This socket does not support USB Bluetooth signals. (The PCI Express x1 slots conform to PCI Express 2.0 standard) *3:Please update your BIOS and drivers to the latest version to support Windows 7.TAG
Tecnologia
Intel
Socket
CPU Intel A Bordo
Formato
Mini ITX
Supporto RAM
DDR3/DDR3L
SATA2
2-porte
USB 2.0
6-porte
USB 3.0
4-porte
Output Video
VGA-HDMI
DESCRIZIONE
- CPU
Intel® Celeron® Quad-Core J1900 SoC onboard Processors
- Memoria
2 x SO-DIMM, Max. 8GB, DDR3L 1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - Grafica
Integrated Graphics Processor
Multi-VGA output support : HDMI/RGB ports
- Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
- Supports RGB with max. resolution 2560 x 1600 @ 60 Hz
Maximum shared memory of 512 MB
Supports DirectX 11 - Slot di Espansione
1 x PCIe 2.0 x1
1 x mini-PCIe *2 - Storage
Built-in Controller :
2 x SATA 3Gb/s port(s), dark brown
Supports Intel® Smart Connect Technology - LAN
Realtek® RTL8111G, 1 x Gigabit LAN Controller(s)
- Audio
Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *1
- Supports : Jack-detection, Front Panel Jack-retasking - Porte USB
Built-in Controller :
1 x USB 3.0 port(s) (1 at back panel, blue)
Built-in Controller :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board) - Caratteristiche Speciali
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors - Operating System Support
Windows® 8.1
Windows® 8
Windows® 7
Please update your BIOS and drivers to the latest version to support Windows 7 - Porte I/O Posteriori
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.0
4 x USB 2.0
1 x COM port(s)
3 x Audio jack(s) - I/O Interne
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x TPM header
1 x LPT header
1 x COM port(s) connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Buzzer - Accessori
User's manual
I/O Shield
2 x SATA 3Gb/s cable(s) - BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
- Gestibilità
WfM 2.0, DMI 2.0, WOL by PME, PXE
- Disco di Supporto
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version) - Dimensioni Scheda
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
