DESCRIZIONE

General informationTypeCPU / MicroprocessorMarket segmentDesktopFamily

Intel Celeron Dual-CoreModel number

G1610CPU part numbers

• CM8063701444901 is an OEM/tray microprocessor

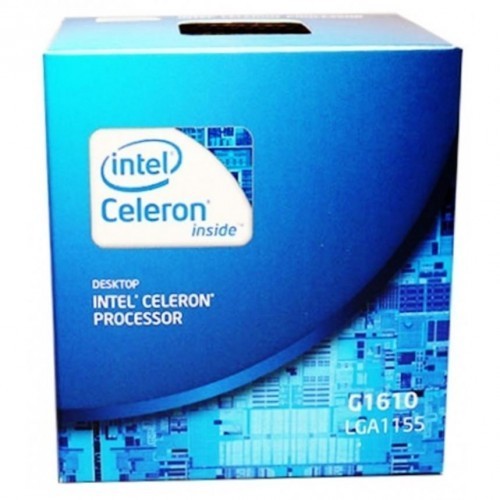

• BX80637G1610 is a boxed processor with fan and heatsink (English version)

• BXC80637G1610 is a boxed processor with fan and heatsink (Chinese version)

Frequency2600 MHzBus speed5 GT/s DMIClock multiplier26Package1155-land Flip-Chip Land Grid ArraySocketSocket 1155 / H2 / LGA1155Size1.48" x 1.48" / 3.75cm x 3.75cm

S-spec numbers

 ES/QS processorsProduction processors

BX80637G1610 +
BXC80637G1610 +
CM8063701444901++


Architecture / Microarchitecture
MicroarchitectureIvy Bridge
Processor coreIvy Bridge
Core steppingP0 (SR10K)
Manufacturing process0.022 micron
Data width64 bit
The number of cores2
The number of threads2
Floating Point UnitIntegrated
Level 1 cache size2 x 32 KB 8-way set associative instruction caches

2 x 32 KB 8-way set associative data caches
Level 2 cache size2 x 256 KB 8-way set associative caches
Level 3 cache size2 MB 8-way set associative shared cache
Physical memory32 GB
MultiprocessingNot supported
Features

• MMX instructions

• SSE / Streaming SIMD Extensions

• SSE2 / Streaming SIMD Extensions 2

• SSE3 / Streaming SIMD Extensions 3

• SSSE3 / Supplemental Streaming SIMD Extensions 3

• SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4

• EM64T / Extended Memory 64 technology / Intel 64

• NX / XD / Execute disable bit

• VT-x / Virtualization technology

Low power featuresEnhanced SpeedStep technology
Integrated peripherals / components
Integrated graphicsGPU Type: HD (Ivy Bridge)

Base frequency (MHz): 650

Maximum frequency (MHz): 1050

The number of supported displays: 3
Memory controllerThe number of controllers: 1

Memory channels: 2

Supported memory: DDR3-1333

Maximum memory bandwidth (GB/s): 21.3
Other peripherals

• Direct Media Interface 2.0

• PCI Express 2.0 interface

Electrical / Thermal parameters
Thermal Design Power55 Watt
Notes on Intel Celeron G1610

• The CPU is compatible with DirectX 11.0, OpenGL 4.0 and OpenCL 1.2 APIs.
