DESCRIZIONE

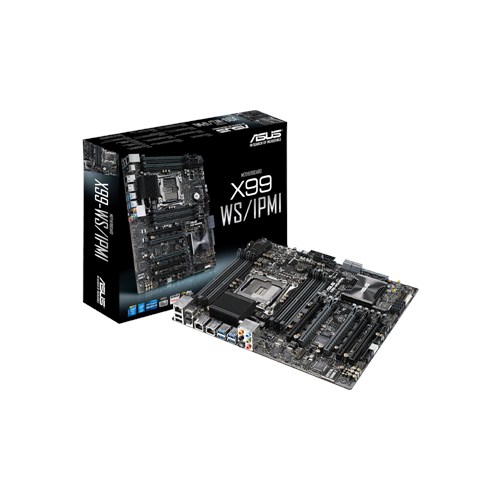

MB 2011-v3 Asus X99 WS

• CPU
  Build in Intel® Socket 2011-v3 Core™ i7/Core™ i7 X-Series Processors
  Supports Intel® 22 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v3 product family
  Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v3 product family
  Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v4 product family
  Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v4 product family
• Chipset
  Intel® X99
• Memory
  8 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory *¹
  8 x DIMM, Max. 128GB, DDR4 2400/2133/1866 MHz ECC, Un-buffered Memory *²
  8 x DIMM, Max. 128GB, DDR4 2400/2133/1866 MHz ECC, Register Memory *²
  Quad Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Multi-GPU Support
  Supports NVIDIA® 3-Way SLI™ Technology *³
  Supports AMD Quad-GPU CrossFireX™ Technology
• Expansion Slots
  40-Lane CPU-
  5 x PCIe 3.0/2.0 x16 (single at x16, dual at x16/x16, triple at x16/x16/x8, quintuple at x8/x8/x8/x8/x8 mode)
  28-Lane CPU-
  5 x PCIe 3.0/2.0 x16 (single at x16, dual at x16/x8, quad at x8/x8/x8/x4 mode) *⁴
• Storage
  Intel® X99 chipset :
  8 x SATA 6Gb/s port(s), *⁵,
  1 x SATA Express port, gray, , Compatible with 2 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3, gray, *⁶
  Support Raid 0, 1, 5, 10
  Supports Intel® Smart Connect Technology
• LAN
  Intel® I210-AT, 2 x Gigabit LAN Controller(s)
  1 x Management LAN
• Audio
  Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking
  - High quality 109 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)
  - High-fidelity audio OP AMP(s)
  Audio Feature :
  - DTS Ultra PC II
  - DTS Connect
  - Optical S/PDIF out port(s) at back panel
  - BD Audio Layer Content Protection
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Audio amplifier: Provides the highest-quality sound for headphone and speakers
  Premium Japanese-made 12K hours capacitors
  - Absolute Pitch 192khz/24bit true BD lossless sound
  Separate layer for left and right track, ensuring both sound deliver equal quality
• USB Ports
  Intel® X99 chipset :
  6 x USB 3.0/2.0 port(s) (2 at back panel, , 4 at mid-board)
  Intel® X99 chipset :
  6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
  ASMedia® USB 3.0 controller :
  2 x USB 3.0/2.0 port(s) (2 at back panel, +blue)
• Workstation Feature
  5 x PCIe x 16 slot(s)
  ASUS Dr. Power
  12K hours Capacitors
  ProCool Power Connector
  Q-Code Logger
• Special Features
  ASUS TPU :
  - TPU switch
  ASUS EPU :
  - EPU
  - EPU switch
  ASUS Digital Power Design :
  - Industry leading Digital 8 Phase Power Design
  - Industry leading Digital 4 Phase DRAM Power Design
  - CPU Power Utility
  - DRAM Power Utility
  ASUS Exclusive Features :
  - USB BIOS Flashback
  - MemOK!
  - Ai Charger+
  - USB Charger+
  - M.2 & SATA Express
  - Disk Unlocker
  - Turbo LAN
  - Crystal Sound 2
  - EZ XMP ASUS Exclusive Features
  ASUS EZ DIY :
  - ASUS O.C. Tuner
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-Code
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  Media Streamer
• Operating System Support
  Windows® 8.1
  Windows® 8
  Windows® 7
  Windows® Server 2012 R2
• Back I/O Ports
  2 x LAN (RJ45) port(s)
  4 x USB 3.0 (blue)
  2 x USB 2.0 (one port can be switched to USB BIOS Flashback) *⁷
  1 x Optical S/PDIF out
  8 x Audio jack(s)
  1 x USB BIOS Flashback Button(s)
  1 x Q-Code Logger button
  1 x 8-channel Audio I/O
  1 x Management LAN
• Internal I/O Ports
  1 x AAFP connector
  2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3 for M Key, type 2260/2280 devices
  1 x TPM connector(s)
  1 x TPM header
  8 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  4 x Chassis Fan connector(s) (4 x -pin)
  1 x S/PDIF out header(s)
  2 x 8-pin EATX 12 V Power connector
  1 x 6-pin EATX 12 V_1 Power connector(s)
  1 x 24-pin EATX Power connector(s)
  1 x EZ XMP switch
  1 x AUX panel header(s)
  1 x SMBus header(s)
  1 x System panel(s)
  1 x DRCT header(s)
  1 x MemOK! button(s)
  1 x TPU switch(es)
  1 x EPU switch(es)
  1 x Power-on button(s)
  1 x Reset button(s)
  1 x Clear CMOS button(s)
  1 x Dr.Power switch(es)
  1 x 3-pin CHASSIS(Chassis intrusion) connector
• Accessories
  User's manual
  ASUS Q-Shield
  1 x COM port cable(s)
  10 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
  1 x 3-Way SLI bridge(s)
  1 x SLI bridge(s)
  1 x 2-port USB 2.0 module(s)
  1 x VGA bracket(s)
  1 x ASWM Enterprise SDVD
  1 x ASMB8 Support DVD
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
  ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard , F3 My Favorites, Quick Note, Last Modified log,
  F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
• Manageability
  WfM 2.0, DMI 2.7, WOL by PME, PXE
• Support Disc
  Drivers、ASUS Utilities、EZ Update 、Anti-virus software (OEM version)
• Form Factor
  ATX Form Factor *⁸
  12 inch x 10 inch ( 30.5 cm x 25.4 cm )
• Weight
  Color Box (3-in-1)
  Net Weight : 4.5 KG
  Gross Weight : 7 KG

  Bulk Pack (5-in-1)
  Net Weight : 5.8 KG
  Gross Weight : 7 KG
• Environment
  Operation temperature: 10℃ ~ 35℃
  Non operation temperature: -40℃ ~ 70℃
  Non operation humidity: 20% ~ 90% ( Non condensing)
